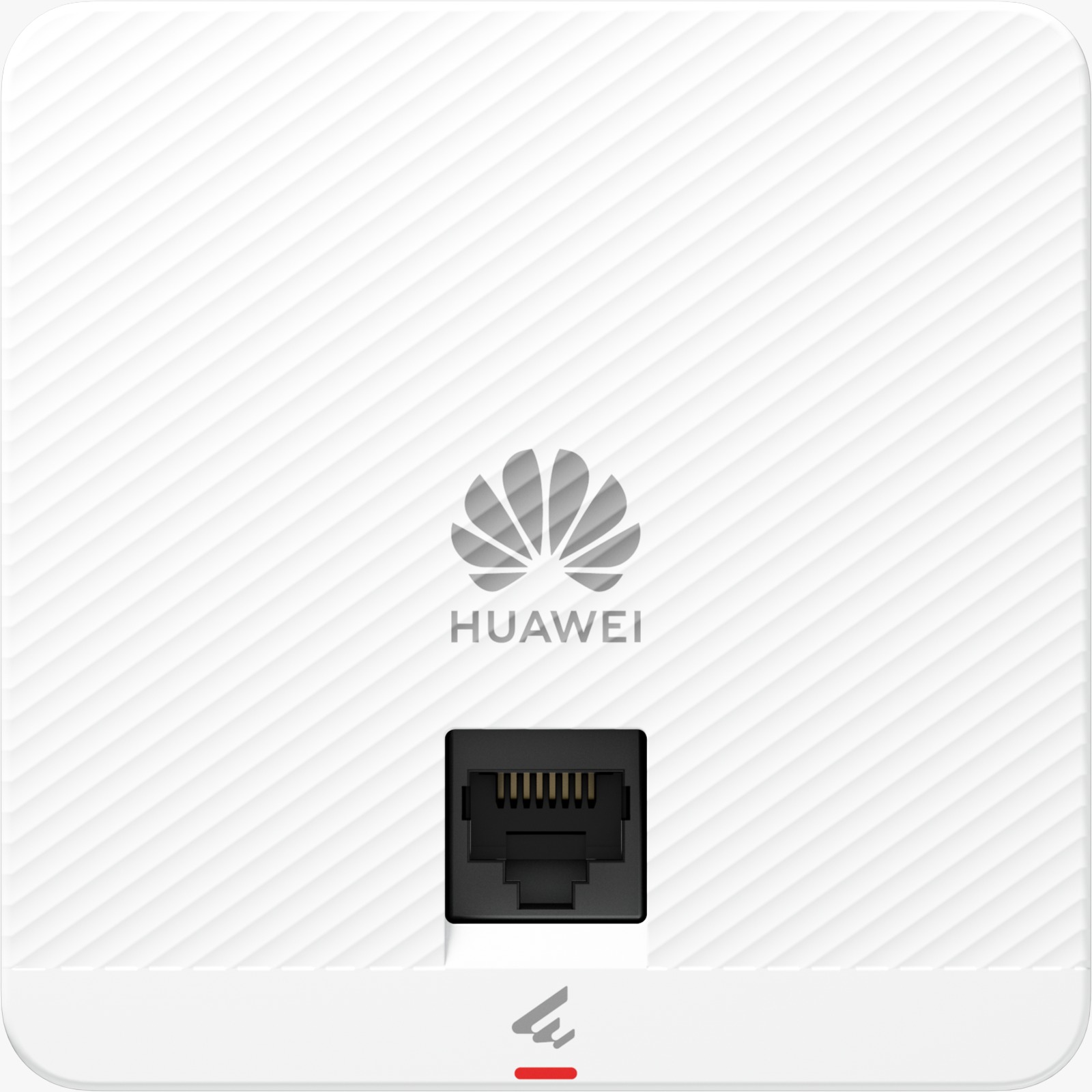

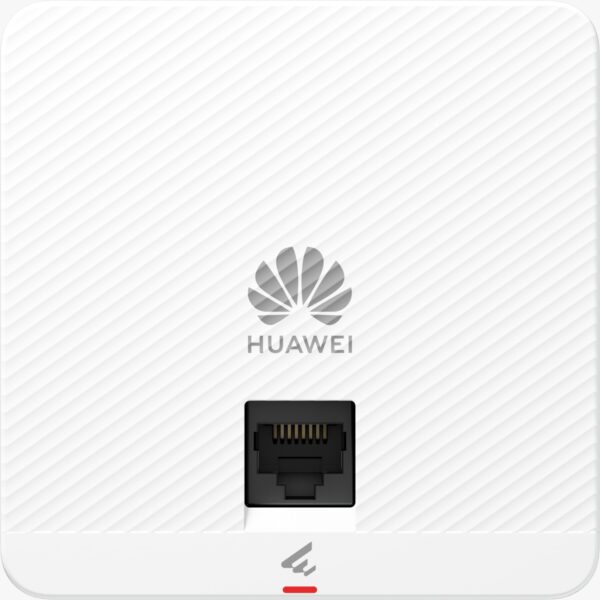

Router-AP162E
$66.38$71.54 (-7%)
Wall plate 86×86 AP | Wi-Fi 6 | 2.975 Gbps device rate | Dual-radio | 48 access users recommended | Max. 128 access users | 20 dBm transmit power | Smart antenna | 10 m optimal coverage range
Description
Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Installation Type Junction Box (86 mm)
Optimal Signal Distance (m) 10
Max Number of Access Users 128
Recommended Number of Access Users 48
Device Rate 2.975 Gbps
Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Radio number 2
Maximum channel bandwidth [MHz] Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz
Maximum transmit power 2.4 GHz: 17 dBm/chain 20 dBm (combined power) 5 GHz: 17 dBm/chain 20 dBm (combined power)
MIMO spatial streams Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2
Maximum power consumption [W] 9.1
Input voltage range [V] PoE: 802.3af
Dimensions without packaging (H x W x D) [mm(in.)] 86 mm x 86 mm x 42.5 mm (3.39 in. x 3.39 in. x 1.67 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 98 mm x 117 mm x 73 mm (3.86 in. x 4.61 in. x 2.87 in.)
Weight without packaging [kg(lb)] 0.14 kg (0.31 lb)
Weight with packaging [kg(lb)] 0.24 kg (0.53 lb)
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Radio interface Built-in smart antennas
Antenna gain 2.4 GHz: 3 dBi/chain (peak value) 3 dBi (combined gain) 5 GHz: 2 dBi/chain (peak value) 1 dBi (combined gain)
Operating frequency band 2.4GHz,5GHz
